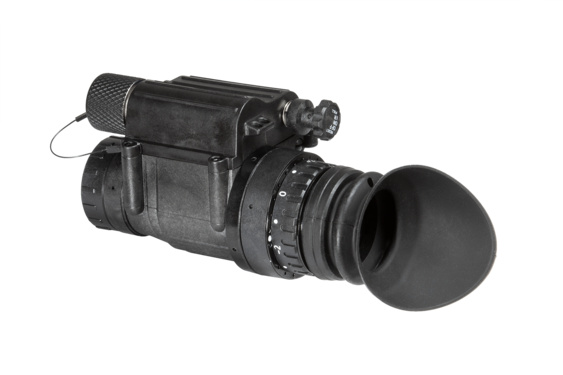

AGM PVS-14E Gen 2+ White Phosphor Level 1 Night Vision Monocular: Lightweight, Versatile, and Flexible Power
Product Description:
In 2024, AGM Global Vision continues its tradition of innovation by introducing the AGM PVS-14E, an enhanced update to the proven PVS-14 night vision system. This new version offers significant improvements in battery system flexibility and overall weight reduction, all while maintaining the high performance that distinguishes AGM products.
The AGM PVS-14E is a rugged, lightweight, and multi-purpose night vision device designed to operate in even the most challenging environments. It can be used as a handheld unit or mounted on the included head harness for hands-free operation.
A standout feature is its advanced automatic shut-off system, which saves power and boosts convenience. The device automatically turns off when articulated to the side and instantly re-engages when brought back into operational view.
The PVS-14E boasts a more compact lens and eyepiece, reducing the unit’s total weight to just 290 grams (10.2 ounces). Its flexible power system makes it compatible with both AA and CR123 batteries, ensuring uninterrupted operation without limiting your battery choice. Plus, the electronic polarity switching system eliminates any concern about battery orientation—just insert it, and you’re ready to go!
The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off protects the high-quality photocathode tube from damage caused by sudden light sources, automatically re-activating the device when light levels return below the threshold.
Backed by AGM Global Vision’s commitment to quality, the PVS-14E comes with a 3-year warranty.
Key Features & Benefits of the AGM PVS-14E:
- Unique Electronic Controller: Advanced management of device functions.
- Automatic Shut-off & Manual Gain Control: Optimizes power consumption and image quality.
- Multiple Battery Compatibility (AA or CR123): Maximum power flexibility.
- Automatic On/Off Switching: Device turns off when moved out of view for convenience and power saving.
- More Compact & Lighter: Smaller size (108 mm) and lighter weight (only 290 g) for enhanced comfort.
- User-Friendly Controls: Intuitive interface for easy operation even in challenging conditions.
- Versatile Mounting Options: Can be used handheld or mounted on a head harness/helmet.
- Built-in IR Illuminator: Provides infrared light for operation in complete darkness.
- Waterproof & Rugged: Designed to withstand adverse environmental conditions.
- 3-Year Warranty: Testament to product reliability and quality.
Technical Specifications:
- Resolution: 64 lp/mm (lines per millimeter)
- Image Intensifier Tube: Gen 2+ “White Phosphor Level 1”
- FOM (Figure Of Merit): 1400
- Magnification: 1x (3x and 5x optional)
- Lens System: 26 mm; F/1.2
- Field of View (FOV): 40°
- Focus Range: 0.25 m to infinity
- Diopter Adjustment: -6 to +2 diopters
- LED Indicators (in FOV): Low Battery, IR On, Excessive Light Conditions
- Manual Gain Control: Yes
- Bright Light Cut-Off: Yes
- Infrared Illuminator (IR): Yes
- Battery Type: One AA Alkaline, one AA Lithium L91, one CR123 Lithium, or a rechargeable AA or RCR123 battery up to 3.7 V
- Battery Life (Operating): Up to 40 hours at 20°C
- Operating Temperature Range: -51° C to +49° C
- Storage Temperature: -51° C to +85° C
- Weight: 290 g (10.2 oz)
- Dimensions (w/o lens cap and eyecup): 108 × 63 × 69 mm (4.25 × 2.5 × 2.7 inches)
